*By Opal Wright*

Zero-knowledge (ZK) proofs are useful cryptographic tools that have seen an explosion of interest in recent years, largely due to their applications to cryptocurrency. The fundamental idea of a ZK proof is that a person with a secret piece of information (a cryptographic key, for instance) can prove something about the secret without revealing the secret itself. Cryptocurrencies are using ZK proofs for all sorts of fun things right now, including anonymity, transaction privacy, and “roll-up” systems that help increase the efficiency of blockchains by using ZK proofs to batch transactions together. ZK proofs are also being used in more general ways, such as allowing security researchers to prove that they know how to exploit a software bug without revealing information about the bug.

As with most things in cryptography, though, it’s hard to get everything right. This blog post is all about a pair of bugs in some special-purpose ZKP code that allow ne’er-do-wells to trick some popular software into accepting invalid proofs of impossible statements. That includes “proving” the validity of invalid inputs to a group signature. This, in turn, can lead to invalid signatures. In blockchain systems that use threshold signatures, like ThorChain and Binance, this could allow an attacker to prevent targeted transactions from completing, creating a denial-of-service attack– against the chain as a whole or against specific participants.

## Background on discrete log proofs

One specialized ZK proof is a discrete logarithm proof of knowledge. Suppose Bob provides Alice with an RSA modulus

, where *N = PQ*

and *P*

are very large primes known only to Bob, and Bob wants to prove to Alice that he knows a secret exponent *Q*

such that *x*

That is, *s ≡ t ^{x}* (

*mod N*).

*x*

is the discrete logarithm of *s*

with respect to base *t*

, and he wants to prove that he knows *x*

without revealing anything about it.The protocol works as follows:

- First, Bob and Alice agree on a security parameter

, which is a positive integer that determines how many iterations of the protocol to perform. In practice, this is usually set to*k*

.*k = 128* - Second, Bob randomly samples

from*a*_{i}

for*Z*_{Φ(N)}

computes corresponding values*i*=1,2,…,*k*,

, and sends*α*_{i}= t^{ai}(mod N)

to Alice.*α1,α2,…,α*_{k} - Third, Alice responds with a sequence of random bits

.*c*_{1},c_{2},…,c_{k} - Fourth, Bob computes

and sends*z*_{i}= a_{i}+ c_{i}x

to Alice.*z*_{1},z_{2},…,z_{k} - Finally, Alice checks that

for all*t*^{zi}≡ α_{i}s^{ci}(mod N)

. If all the checks pass, she accepts the proof and is confident that Bob really knows*i = 1,2,…,k*

. Otherwise, she rejects the proof—Bob may be cheating!*x*

## Why it works

Suppose Bob doesn’t know

. For each *x*

, Bob has two ways to attempt to fool Alice: one if he thinks Alice will pick *i*

, and one if he thinks Alice will pick *c _{i} = 0*

*c*_{i} = 1

.If Bob guesses that Alice will select

, he can select a random *c _{i} = 0*

*a*_{i} ∈ Z_{N}

and send Alice * α*_{i} = t^{ai} mod N

. If Alice selects *c*_{i} = 0

, Bob sends Alice *z*_{i} = a_{i}

, and Alice sees that *t*^{zi} ≡ t^{ai} ≡ α_{i}s^{0} ≡ α_{i} (mod N)

and accepts the *i*

-th iteration of the proof. On the other hand, if Alice selects *c*_{i} = 1

, Bob needs to compute *z*_{i}

such that *t*^{zi} ≡ t^{ai}s (mod N)

. That is, he needs to find the discrete logarithm of *t*^{ai}s

, which is equal to *a*_{i} + x

. However, Bob doesn’t know *x*

, so he can’t compute a *z*_{i}

that will pass Alice’s check.On the other hand, if Bob guesses that Alice will select

, he can select a random *c _{i} = 1*

*a*_{i} ∈ Z_{N}

and send Alice *α*_{i} = t^{ai}s^{−1} (mod N)

. If Alice selects *c*_{i} = 1

, Bob sends Alice *z*_{i} = a_{i}.

Alice sees that *t*^{zi} ≡ t^{ai}

and *t*^{ai}≡ α_{i}s ≡ t^{αi}s^{−1}s ≡ t^{ai} (mod N)

, and accepts the *i*

-th iteration of the proof. But if Alice selects *c*_{i} = 0

, Bob needs to compute *z*_{i}

such that *t*^{zi} ≡ t^{ai}s^{−1} (mod N)

, which would be *z*_{i} = a_{i} − x

. But again, since Bob doesn’t know *x*

, he can’t compute a *z*_{i}

that will pass Alice’s check.The trick is, each of Bob’s guesses only has a 50 percent chance of being right. If any one of Bob’s

guesses for Alice’s *k*

values are wrong, Alice will reject the proof as invalid. If Alice is choosing her *c _{i}*

*c*_{i}

values randomly, that means Bob’s chances of fooling Alice are about 1 in 2^{k}

.Typically, Alice and Bob will use parameters like

. Bob has a better chance of hitting the Powerball jackpot four times in a row than he does of guessing all *k = 128*

correctly.*c1,c2,…,c128*

In the case of a *non-interactive* proof, as we’ll see in the code below, we don’t rely on Alice to pick the values

. Instead, Bob and Alice each compute a hash of all the values relevant to the proof: *c _{i}*

* c = Hash(N ∥ s ∥ t ∥ α*_{1} ∥ … ∥ α_{k})

. The bits of *c*

are used as the *c*_{i}

values. This is called the Fiat-Shamir transform. It’s certainly possible to get the Fiat-Shamir transform wrong, with some pretty nasty consequences, but the bugs discussed in this article will not involve Fiat-Shamir failures.## The code

Our proof structure and verification code come from `tss-lib`

, written by the folks at Binance. We came across this code while reviewing other software, and the Binance folks were super responsive when we flagged this issue for them.

To start with, we have our `Proof`

structure:

type ( Proof struct { Alpha, T [Iterations]*big.Int } )

This is a fairly straightforward structure. We have two arrays of large integers, `Alpha`

and `T`

. These correspond, respectively, to the

and *α _{i}*

*z*_{i}

values in the mathematical description above. It’s notable that the `Proof`

structure does *not*incorporate the modulus

*N*

or the values *s*

and *t*

.func (p *Proof) Verify(h1, h2, N *big.Int) bool { if p == nil { return false } modN := common.ModInt(N) msg := append([]*big.Int{h1, h2, N}, p.Alpha[:]...) c := common.SHA512_256i(msg...) cIBI := new(big.Int) for i := 0; i < Iterations; i++ { if p.Alpha[i] == nil || p.T[i] == nil { return false } cI := c.Bit(i) cIBI = cIBI.SetInt64(int64(cI)) h1ExpTi := modN.Exp(h1, p.T[i]) h2ExpCi := modN.Exp(h2, cIBI) alphaIMulH2ExpCi := modN.Mul(p.Alpha[i], h2ExpCi) if h1ExpTi.Cmp(alphaIMulH2ExpCi) != 0 { return false } } return true }

This code actually *implements* the verification algorithm. The arguments `h1`

and `h2`

correspond to

and *t*

, respectively. First, it computes the challenge value *s*

. Then, for each bit *c*

of *c _{i}*

*c*

, it computes:If

for any *h1ExpTi ≠ alphaIMulH2ExpCi*

, the proof is rejected. Otherwise, it is accepted.*0 < i ≤ k*

## The issue

The thing to notice is that the `Verify`

function doesn’t do any sort of check to validate `h1`

, ` h2`

, or any of the elements of `p.Alpha`

or `p.T`

. A lack of validity checks means we can trigger all sorts of fun edge cases. In particular, when it comes to logarithms and exponential relationships, it’s important to look out for zero. Recall that, for any

, we have *x ≠ 0*

. Additionally, for any *0 ^{x} = 0*

*, we have*

`x`

*0 ∙ x = 0*

. We are going to exploit these facts to force the equality check *h1ExpTi = alphaIMulH2ExpCi*

to always pass.## The first impossible thing: Base-0 Discrete Logs

Suppose Bob creates a `Proof`

structure `p`

with the following values:

- All elements of
`p.T`

are positive (that is,

for all*z*_{i}> 0

)*i* - All elements of
`p.Alpha`

are set to 0 (that is,

for all*α*_{i}= 0

)*i*

Now consider a call to the `Verify`

function with the following parameters:

`N`

is the product of two large primes`h1`

set to any integer (that is,

is unconstrained)*s*`h2`

set to 0 (that is,

)*t = 0*

The `Verify`

function will check that

. On the right hand side of the relationship, *t ^{zi} ≡ α_{i}s^{ci} (mod N)*

*α*_{i} = 0

forces *α*_{i}s^{ci}= 0

. On the left hand side of the equation, *t*^{zi} = 0^{zi} = 0

because *z*_{i} > 0

. Thus, the `Verify`

function sees that *0 = 0*

, and accepts the proof as valid. Recall that the proof is meant to demonstrate that Bob knows the discrete log of *s*

with respect to `t`

. In this case, the `Verifier`

routine will believe that Bob knows an integer *x*

such that *s ≡ 0*^{x} (mod N)

for any *s*

. But if *s ∉*

{0,1}, that’s impossible!## The fix

Preventing this problem is straightforward: validate that `h2`

and the elements of `p.Alpha`

are all non-zero. As a matter of practice, it is a good idea to validate *all* cryptographic values provided by another party, ensuring that, for example, elliptic curve points lie on a curve and that integers fall within their appropriate intervals and satisfy any multiplicative properties. In the case of this proof, such validation would include checking that `h1`

, `h2`

, and `p.Alpha`

are non-zero, relatively prime to `N`

, and fall within the interval [1,*N*). It would also be a good idea to ensure that `N`

passes some basic checks (such as a bit length check).

## Proof of encryption of a discrete log

In some threshold signature protocols, one of the steps in the signature process involves proving two things simultaneously about a secret integer

that Bob knows:*x*

- That

, where*X = R*^{x}

and*X*

are in an order-*R*

group*q*

(typically,*G*

will be the multiplicative group of integers for some modulus, or an elliptic curve group)*G* - That a ciphertext

for some randomization value*c = PaillierEnc*(_{N}*x*,*r*)

and Bob’s public key*r ∈ Z*^{⋆}_{N}*N*. That is,

.*c = (N + 1)*^{x}r^{N}(mod N^{2})

(Just for clarity: *G* is typically specified alongside a maximal-order group generator

. It doesn’t get used directly in the protocol, but it does get integrated into a hash calculation – it doesn’t affect the proof, so don’t worry about it too much.)*g ∈ G*

Proving this consistency between the ciphertext

and the discrete logarithm of *c**X* ensures that Bob’s contribution to an elliptic curve signature is the same value he contributed at an earlier point in the protocol. This prevents Bob from contributing bogus *X* values that lead to invalid signatures.

As part of the key generation, a set of “proof parameters” are generated, including a semiprime modulus *Ñ* (whose factorization is unknown to Alice and Bob), as well as *h*_{1} and *h*_{2}, both coprime to *Ñ*.

Bob begins by selecting uniform random values * α← ^{$}Z_{q3},β←^{$}Z^{*}_{N},γ←^{$}Z_{q3Ñ} and ρ←^{$}Z_{q3Ñ}.*

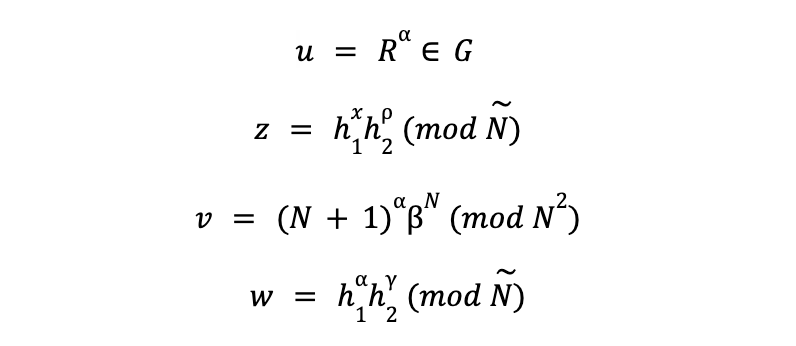

Bob then computes:

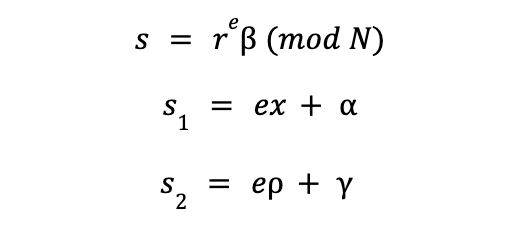

Finally, Bob computes a Fiat-Shamir challenge value

and the challenge response values:*e = Hash(N,Ñ,h _{1},h_{2},g,q,R,X,c,u,z,v,w)*

Note that

and *s _{1}*

*s*_{2}

are computed not modulo any value, but over the integers. Bob then sends Alice the proof π_{PDL}=[

*z,e,s,s*_{1},s_{2}

].Alice, upon receiving π_{PDL}, first checks that

; if this check fails, she rejects the proof as invalid. She then computes:*s _{1} ≤ q^{3}*

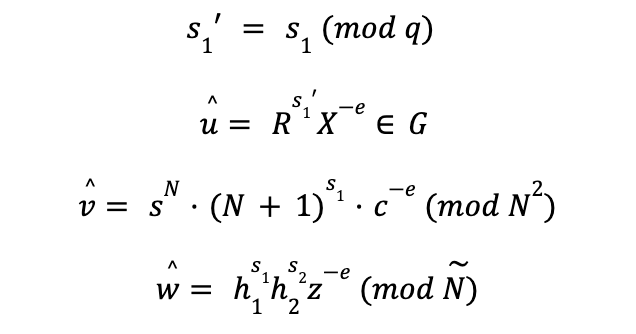

Finally, Alice computes:

If

, she rejects <*e ≠ ê**π _{PDL}* as invalid. Otherwise, she accepts

*π*as valid.

_{PDL}## Why it works

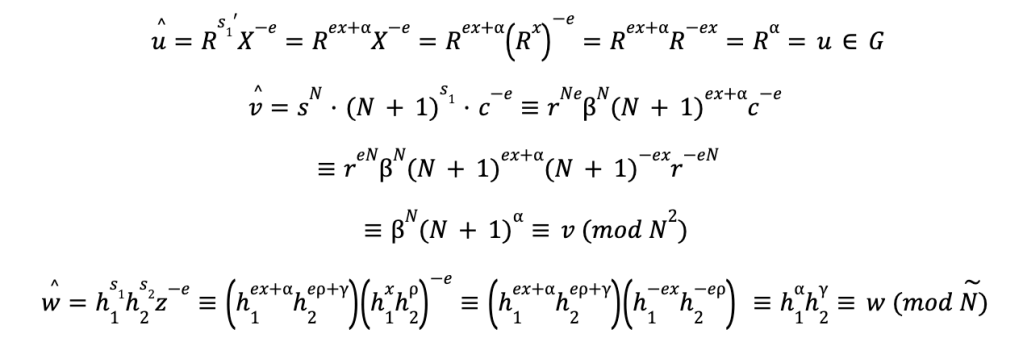

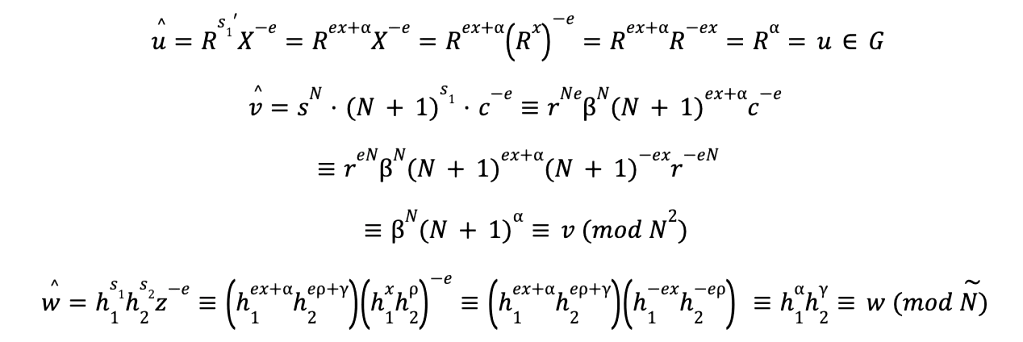

First, let’s make sure that a valid proof will validate:

Because *u* (with a hat), *v* (with a hat) and *w* (with a hat), match *u*, *v*, and *w* (respectively), we will have

, and the proof will validate.*ê, = e*

To understand how Bob is prevented from cheating, read this paper and section 6 of this paper.

## The code

The following code is taken from the `kryptology`

library’s Paillier discrete log proof implementation. Specifically, the following code is used to compute v (with a hat):

func (p PdlProof) vHatConstruct(pv *PdlVerifyParams) (*big.Int, error) { // 5. \hat{v} = s^N . (N + 1)^s_1 . c^-e mod N^2 // s^N . (N + 1)^s_1 mod N^2 pedersenInc, err := inc(p.s1, p.s, pv.Pk.N) if err != nil { return nil, err } cInv, err := crypto.Inv(pv.C, pv.Pk.N2) if err != nil { return nil, err } cInvToE := new(big.Int).Exp(cInv, p.e, pv.Pk.N2) vHat, err := crypto.Mul(pedersenInc, cInvToE, pv.Pk.N2) if err != nil { return nil, err } return vHat, nil }

The calling function, `Verify`

, uses `vHatConstruct`

to compute the *v* (with a hat) value described above. In a valid proof, everything should work out just fine.

## The issue

In an *invalid* proof, things do not work out just fine. In particular, it is possible for Bob to set

. When this happens, the value of * v = s = 0 *

is irrelevant: Alice winds up checking that v (with a hat) *c*

, and accepts the result.* = 0 ^{N} ∙ (N+1)_{s1 ∙ c−e = 0 = v</e,>}*

## The second impossible thing: Arbitrary Ciphertexts

By exploiting the

issue, Bob can prove that he knows *v (with a hat) = s = 0**x* such that

, but simultaneously “prove” to Alice that * X = R ^{x}*

*any*value for

*c ≠ 0*

is a valid ciphertext for *x*. Bob doesn’t even need to know the factorization of

*N*. Once again, Bob has “proved” the impossible!

This forgery has real security implications. In particular, being able to forge this proof allows Bob to sabotage the threshold signature protocol *without being detected*. In some systems, this could be used to prevent valid transactions from being performed.

It is worth noting: the specific case of *c = 0**will be detected* as an error. The line `cInv, err := crypto.Inv(pv.C, pv.Pk.N2)`

attempts to invert

modulo *c*

. When *N ^{2}*

*c = 0*

, this function will return an error, causing the `vHatConstruct`

function to return an error in turn.## The fix

Again, this can be prevented by better input validation. Basic validation of the proof would involve checking that *z* and *s* are in `Z`

. That is, checking that ^{*}_{N}

, which forces *gcd(z,N) = gcd(s,N) = 1*

and *z* ≠ *0*

. Additionally, there should be checks to ensure *s* ≠ *0*

and *s _{1} ≠ 0*

*s*_{2} ≠ 0

.## Risks and disclosure

### The risk

These bugs were found in repositories that implement the GG20 threshold signature scheme. If attackers exploit the ciphertext malleability bug, they can “prove” the validity of invalid inputs to a group signature, leading to invalid signatures. If a particular blockchain relies on threshold signatures, this could allow an attacker to prevent targeted transactions from completing.

### Disclosure

We have reported the issues with `tss-lib`

to Binance, who promptly fixed them. We have also reached out to numerous projects that rely on `tss-lib`

(or, more commonly, forks of `tss-lib`

). This includes ThorChain, who have also fixed the code; Joltify and SwipeChain rely directly on the ThorChain fork. Additionally, Keep Networks maintains their own fork of tss-lib; they have integrated fixes.

The issue with `kryptology`

has been reported to Coinbase. The `kryptology`

project on GitHub has since been archived. We were not able to identify any current projects that rely on the library’s threshold signature implementation.

## The moral of the story

In the end, this is a cryptographic failure stemming from a *completely understandable* data validation oversight. Values provided by another party should always be checked against all applicable constraints before being used. Heck, values *computed* from values provided by another party should always be checked against all applicable constraints.

But if you look at mathematical descriptions of these ZK proofs, or even well-written pseudocode, where are these constraints spelled out? These documents describe the algorithms mathematically, not concretely. You see steps such as

, followed later by *β← ^{$}Z^{*}_{N}*

*v = (N + 1)*^{α}β^{N} (mod N^{2})

. From a mathematical standpoint, it’s understood that *v*

is in *Z*^{*}_{N2}

, and thus *. From a programming standpoint, though, there’s no explicit indication that there’s a constraint to check on*

` v ≠ 0`

*v*

.Trail of Bits maintains a resource guide for ZK proof systems at zkdocs.com. These types of issues are one of our primary motivations for such guidance—translating mathematical and theoretical descriptions into software is a difficult process. Admittedly, some of our own descriptions could explain these checks more clearly; we’re hoping to have that fixed in an upcoming release.

One piece of guidance that Trail of Bits likes to give auditors and cryptographers is to look out for two special values: 0 and 1 (as well as their analogues, like the point at infinity). Bugs related to 0 or its analogues have caused problems in the past (for instance, here and here). In this case, a failure to check for 0 leads to two separate bugs that allow attackers in a threshold signature scheme to lead honest parties down a rabbit hole.
