(This posting is cross-posted between the Zeek blog and the Trail of Bits blog).
The Zeek Network Security Monitor provides a powerful open-source platform for network traffic analysis. However, from its network vantage point, Zeek lacks access to host-level semantics, such as the process and user accounts that are responsible for any connections observed. The new Zeek Agent fills this gap by interfacing Zeek directly with your endpoints, providing semantic context that’s highly valuable for making security decisions. The agent collects endpoint data through custom probes and, optionally, by interfacing to osquery and making most of its tables available to Zeek.
We are releasing the Zeek Agent as open-source code under the liberal BSD license. Head over to the releases page and try it now with your macOS and Linux endpoints; Windows support is coming soon! Please share your ideas, requests and other feedback with us by filing an issue on GitHub or joining the
#zeek-agent channel on the new Zeek Slack.
What’s new here and why it’s useful
Traditionally, network security monitors only receive network traffic passively intercepted between hosts (endpoints). While that vantage point is very powerful—the network does not lie!—it does not provide the complete picture, and it can be challenging to understand the broader context of who is doing what on the endpoints. This approach makes analyzing encrypted traffic particularly challenging: Since passive monitoring cannot assess the actual content of the communication, defenders often remain in the dark about its legitimacy.
The Zeek Agent closes this gap by adding an endpoint-level vantage point to host activity. Just like Zeek itself, the policy-neutral agent does not perform any detection. Instead, it collects a stream of host-side events (“new process,” “socket opened,” “user logged in”) and feeds those events into Zeek’s standard processing pipeline, where they become available to Zeek scripts just like traditional network-derived events. By representing both network and host activity inside the same event abstraction, this setup lets users deploy all of Zeek’s powerful machinery to cross-correlate the two vantage points. For example, Zeek could now tag network connections with the endpoint-side services that initiated them (e.g.,

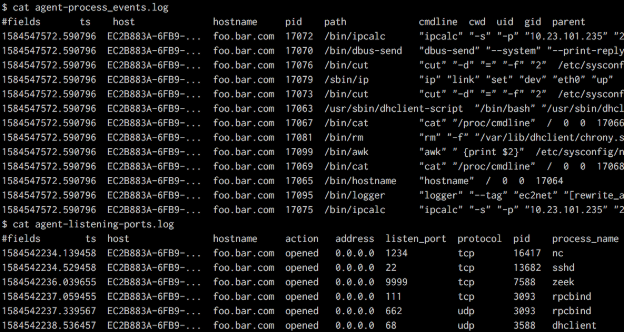

sshd). The agent can also let Zeek create new logs that record endpoint information, as seen in this example:
A short history and background of the project
In 2018 at the University of Hamburg, Steffen Haas developed an initial prototype of the agent. Originally called zeek-osquery, this prototype was a powerful demonstration of the agent approach, but it had certain technical limitations that precluded production usage.
In 2019, Corelight hired Trail of Bits to update and improve Haas’ zeek-osquery software prototype. While the prototype was developed as a set of patches that implemented functionality directly within the osquery core, Trail of Bits suggested a different approach that would be more suitable for long-term development, and a better match for existing deployments. The new version began as a port of the existing code to an osquery extension which could be packaged and distributed independently. Eventually, this process evolved into a clean rewrite to produce an entirely new agent that can operate both in a standalone fashion and with osquery. The agent’s built-in data sources leverage the same underlying process-monitoring capabilities as osquery, but in a way more compatible with how Linux systems are configured for real-world use. Trail of Bits also designed the agent to easily support more custom data sources in the future.
How the Zeek Agent works
Like osquery, the agent provides system information in the form of a database, using the SQLite library. Table plugins publish the actual data, and are allocated and registered during startup. Once they export the necessary methods to report the schema and generate data, the internal framework will create the required SQLite table abstractions and attach them to the database.
Most data sources will inspect the system at query time and report their findings at that specific point in time. However, some tables may want to keep listening for system activity even when no query is being executed. This is commonly referred to as an evented table, which typically uses threads/callbacks to continuously record system events in the background. The
process_events table works exactly like this, and allows Zeek scripts to look at past process executions.
Additional data sources can be imported from osquery, if it happens to be installed and running on the same system, thanks to the extensions socket. With this design, everything appears to come from a single unified database, allowing users to seamlessly join built-in and osquery tables together.
The tables can be accessed via scripts as soon as the agent connects to a Zeek server instance. Data can be requested either by running a single-shot SQL statement or as a scheduled query that runs automatically and reports data at specified intervals.
On the Zeek side, scripts fully control the data requested from the agent by defining corresponding SQL queries. Results stream into Zeek continuously, and transparently turn into standard Zeek events that handlers can hook into, just as if the events were derived from network traffic.
How to get started
The Zeek Agent documentation summarizes how to build and install the agent. On the Zeek side, there’s a new Zeek Agent framework you can install through Zeek’s package manager. See its documentation for more information on installation and usage. For an example of a Zeek script requesting information from the agent, see this script that turns process activity into a Zeek log on Linux.
What’s next for the Zeek Agent?
Right now, we welcome feedback on the Zeek Agent regarding usability, functionality, and deployment models. We’re curious to see what use-cases the Zeek community comes up with, and we encourage users to publish Zeek packages that leverage the agent’s capabilities. The best places to leave feedback are the agent’s GitHub issues, the
#zeek-agent channel on the new Zeek Slack, and the Zeek mailing list.
The agent is an open-source project, so we also appreciate code contributions; just file GitHub pull requests. If you are interested in sponsoring specific work on the Zeek Agent, please contact Corelight.
We continue to extend the agent: We just completed an initial port to macOS, and we’re working on Windows support, as well. We will be extending the Zeek-side agent script framework, and we‘re also adding a multi-hop routing layer to Zeek’s underlying communication system, Broker, to facilitate deployment of the Zeek Agent across numerous endpoints.
