Manage your fleet’s firewalls with osquery

We’re releasing an extension for osquery that lets you manage the local firewalls of your fleet.

Each of the three major operating systems provides a native firewall, capable of blocking incoming and outgoing access when configured. However, the interface for each of these three firewall systems are dissimilar and each requires different methods of configuration. Furthermore, there are few options for cross-platform fleet configuration, and nearly all are commercial and proprietary.

In partnership with Airbnb, we have created a cross-platform firewall management extension for osquery. The extension enables programmatic control over the native firewalls and provides a common interface for each host operating system, permitting more advanced control over an enterprise fleet’s endpoint protections as well as closing the loop between endpoint monitoring and endpoint management.

Along with our Santa management extension, this extension shows the utility of writable tables in osquery extensions. Programmatic control over endpoint firewalls means that an administrator can react more quickly to prevent the spread of malware on their fleet, prevent unexpected data egress from particularly vital systems, or block incoming connections from known malicious addresses. This is a huge advance in osquery’s capabilities, shifting it from merely a monitoring tool into both prevention and recovery domains.

What it can do now

The extension creates two new tables: HostBlacklist and PortBlacklist. These virtual tables generate their entries via the underlying operating systems’ native firewall interfaces: iptables on Linux, netsh on Windows, and pfctl on MacOS. This keeps them compatible with the widest possible range of deployments and avoids further dependence on external libraries or applications. It will work with your existing configuration, and, regardless of underlying platform, provide the same interface and capabilities.

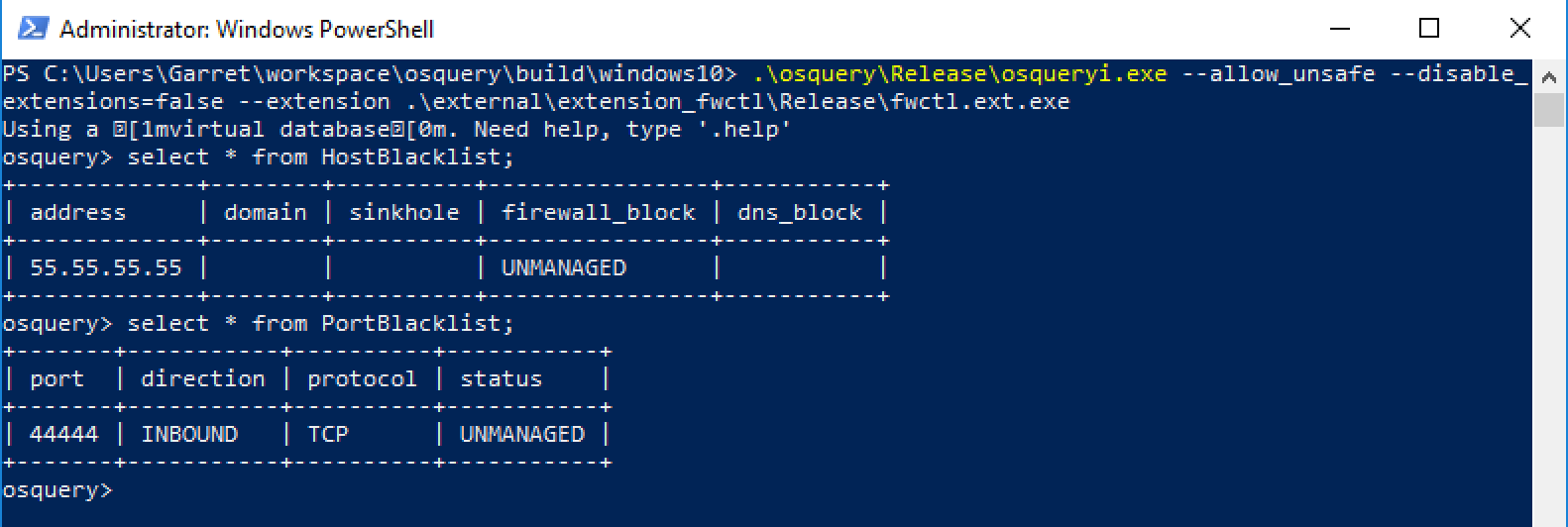

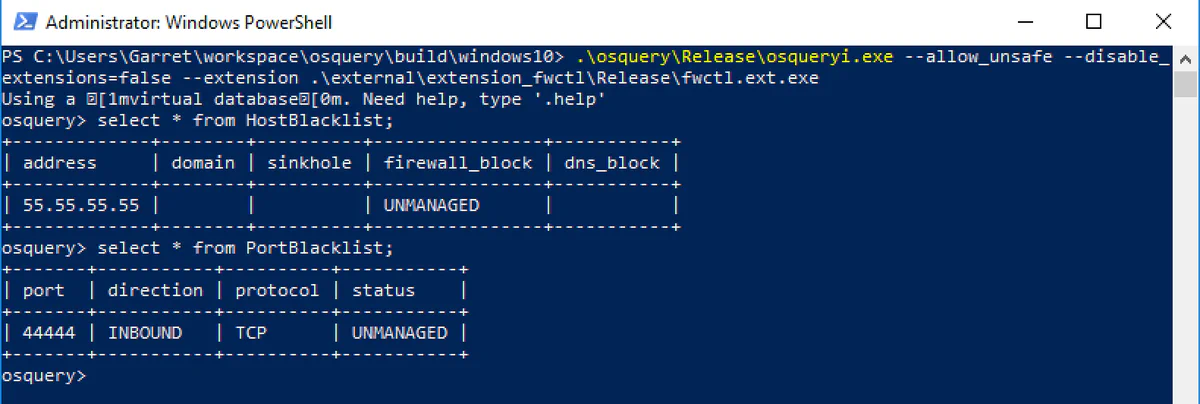

Use osquery to access the local firewall configuration on Mac, Windows, and Linux

What’s on the horizon

While the ability to read the state of the firewall is useful, it’s the possibility of controlling them that we’re most excited about. With writable tables available in osquery, blacklisting a port or a host on a managed system will become as simple as an INSERT statement. No need to deploy an additional firewall management service. No more reviewing how you configure the firewall on macOS. Just write an INSERT statement and push it out the fleet.

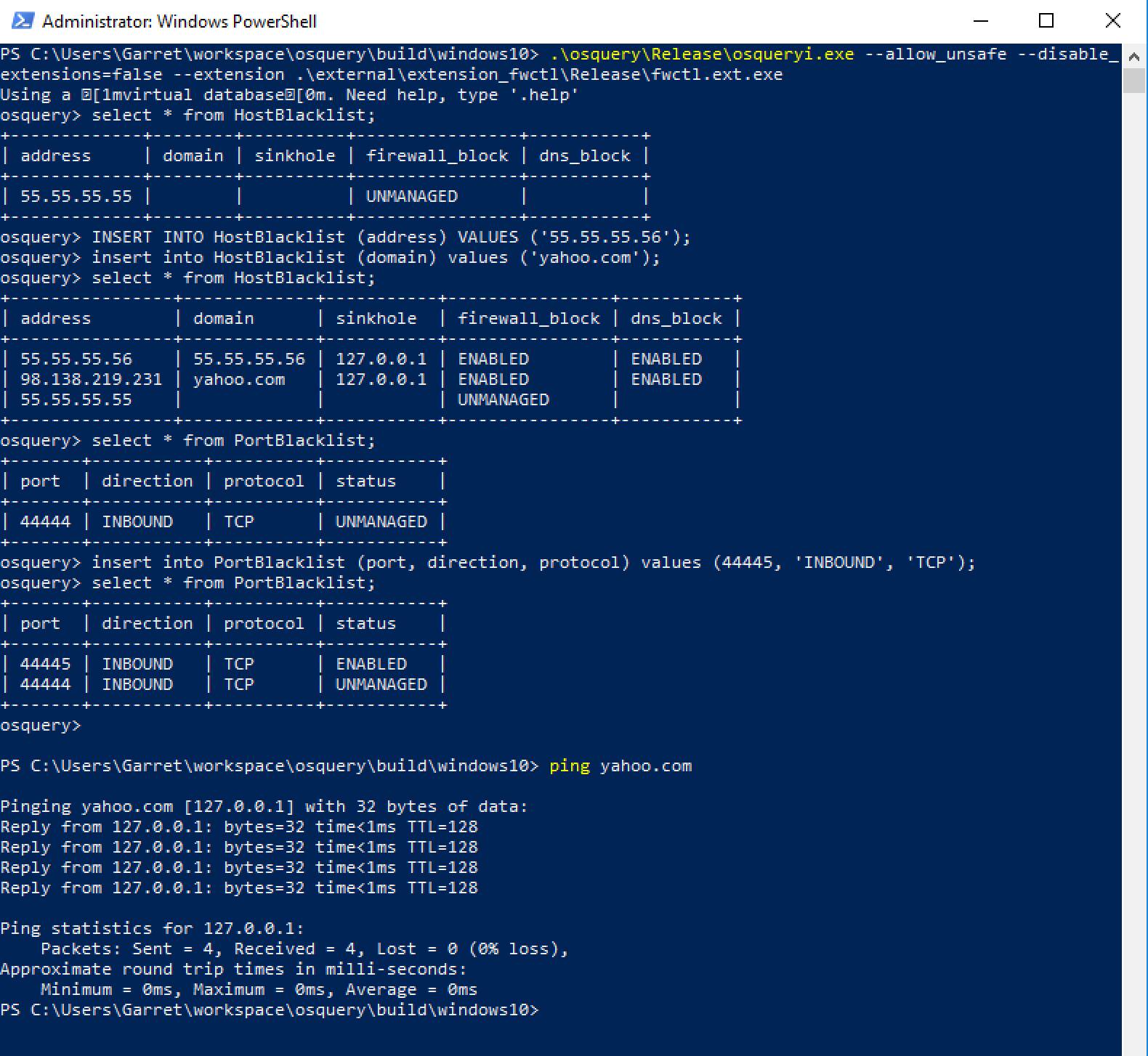

Instantly block hostnames and ports across your entire fleet with osquery

Give it a try

With this extension you can query the state of blacklisted ports and hosts across a managed fleet and ensure that they’re all configured to your specifications. With the advent of the writable tables feature osquery can shift from a monitoring role to a management and preventative tool. This extension takes the first step in that direction.

We’re adding this extension to our managed repository. We’re committed to maintaining and extending our collection of extensions. You should check in and see what else we’ve released.

Do you have an idea for an osquery extension? File an issue on our GitHub repo for it. Contact us for osquery development.
